Oilfield Lifting Electric Winch with Automatic Load-Holding Braking System
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API, ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Payment Terms | T/T |
| Supply Ability | Stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Structure | Electric System | Double Limit Switch | Included |
|---|---|---|---|
| Rope Length | 50m~500m | Power Source | Electric |
| Weight | 25Lbs | Electrical Parts | Siemens Or Schneider Brand |
| Motor | 6.6hp/4.8kw | Braking System | Automatic Load-Holding |
| Rated Line Pull | 1000Lbs | Rated Speed | 8m/min |
| Brake | Included | Gear Ratio | 153:1 |
| Packing Size | 570x190x345mm | Rope Diameter | 7.7~65mm |
| Trolley Speed | 0-20m/min | Usage | Lifting In Oilfield |
| Safety Features | Emergency Stop Button, Overload Protection | Color | Yellow Orange Or Other Colors |
| Material | Steel | Warranty | 1Years |
| Highlight | Oilfield Lifting Electric Winch, 165ft Rope Capacity Electric Winch, Oilfield Electric Lifting Winch |
Product Description
Product Description
PRODUCTION

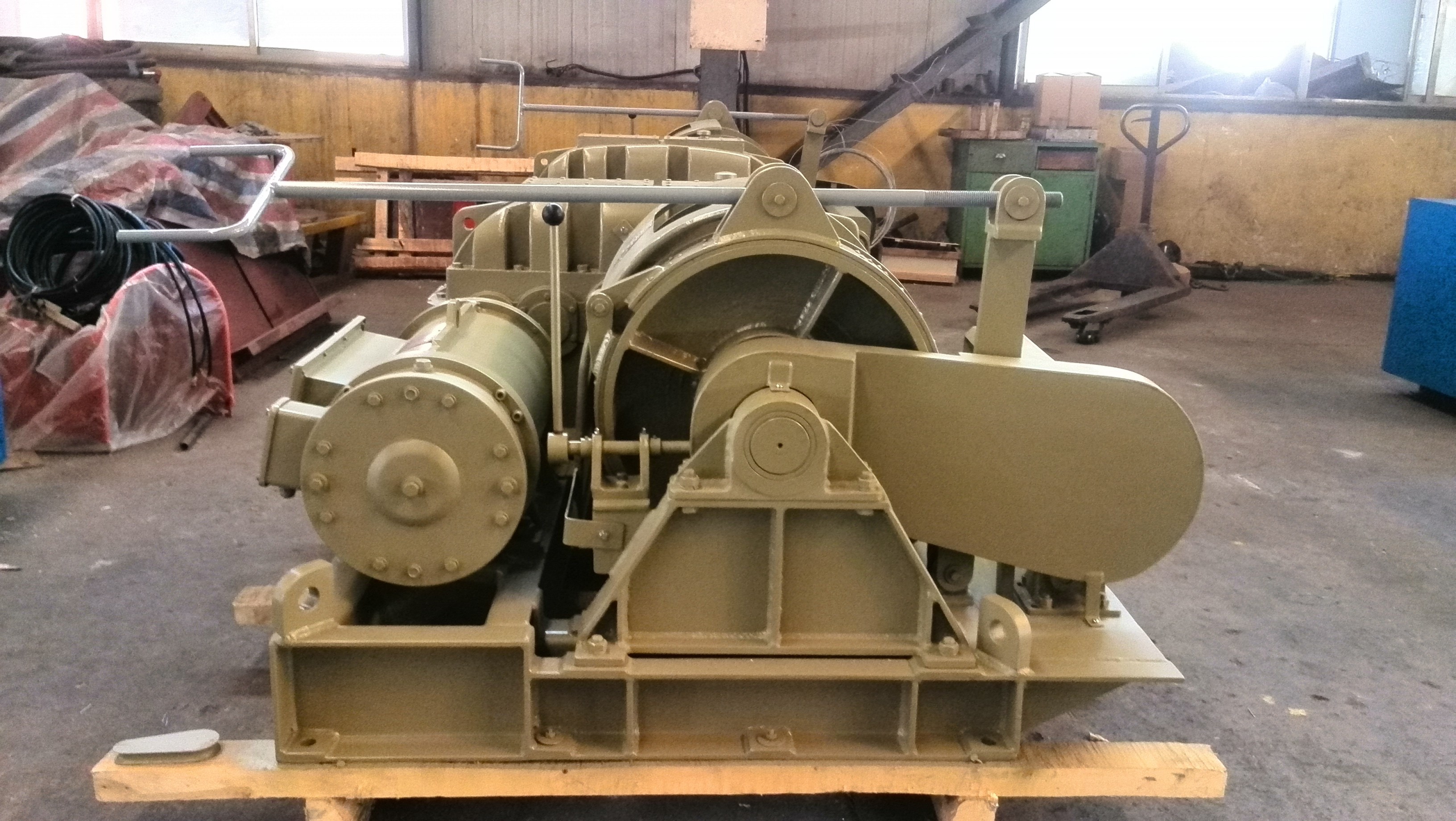

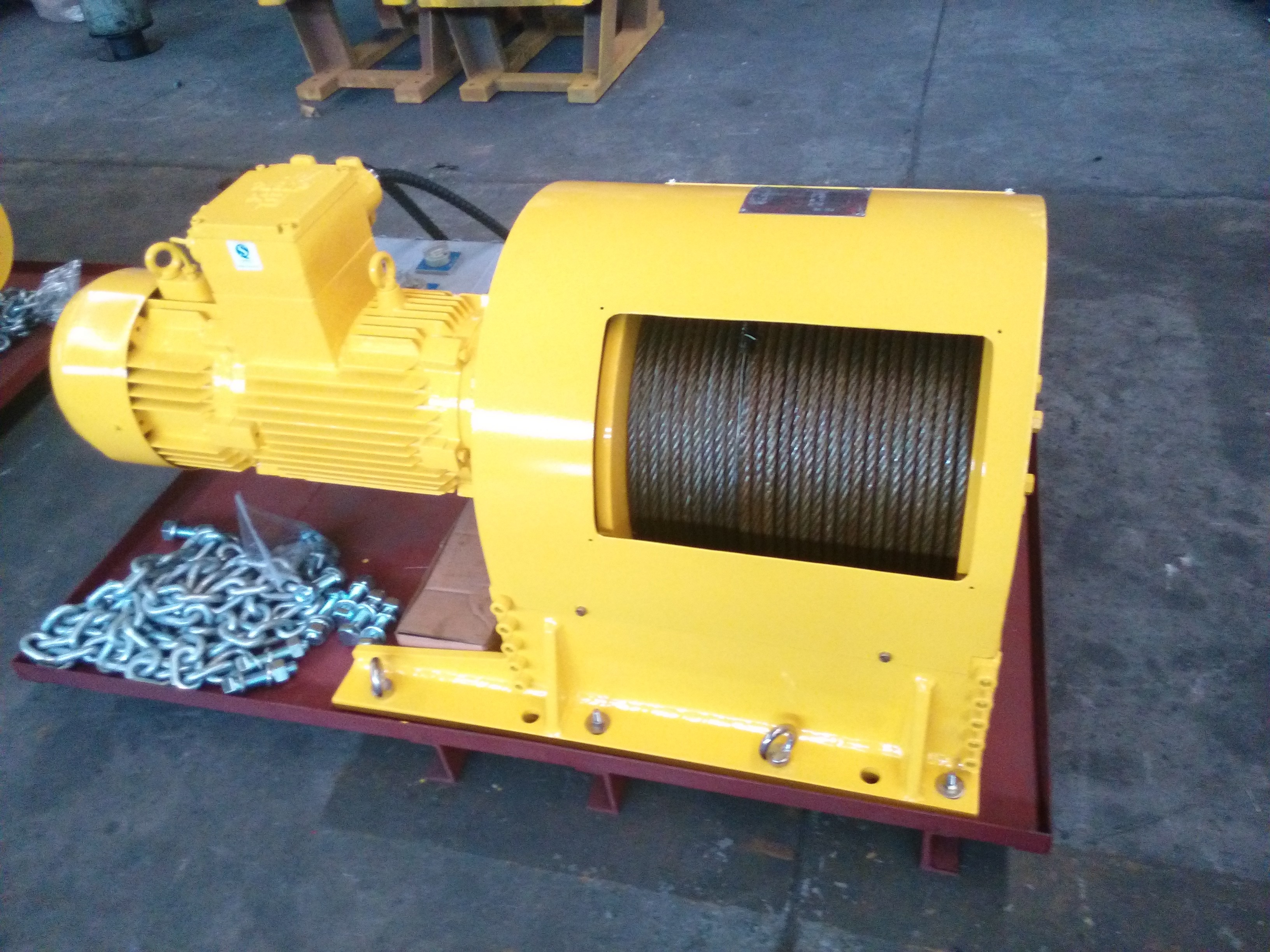

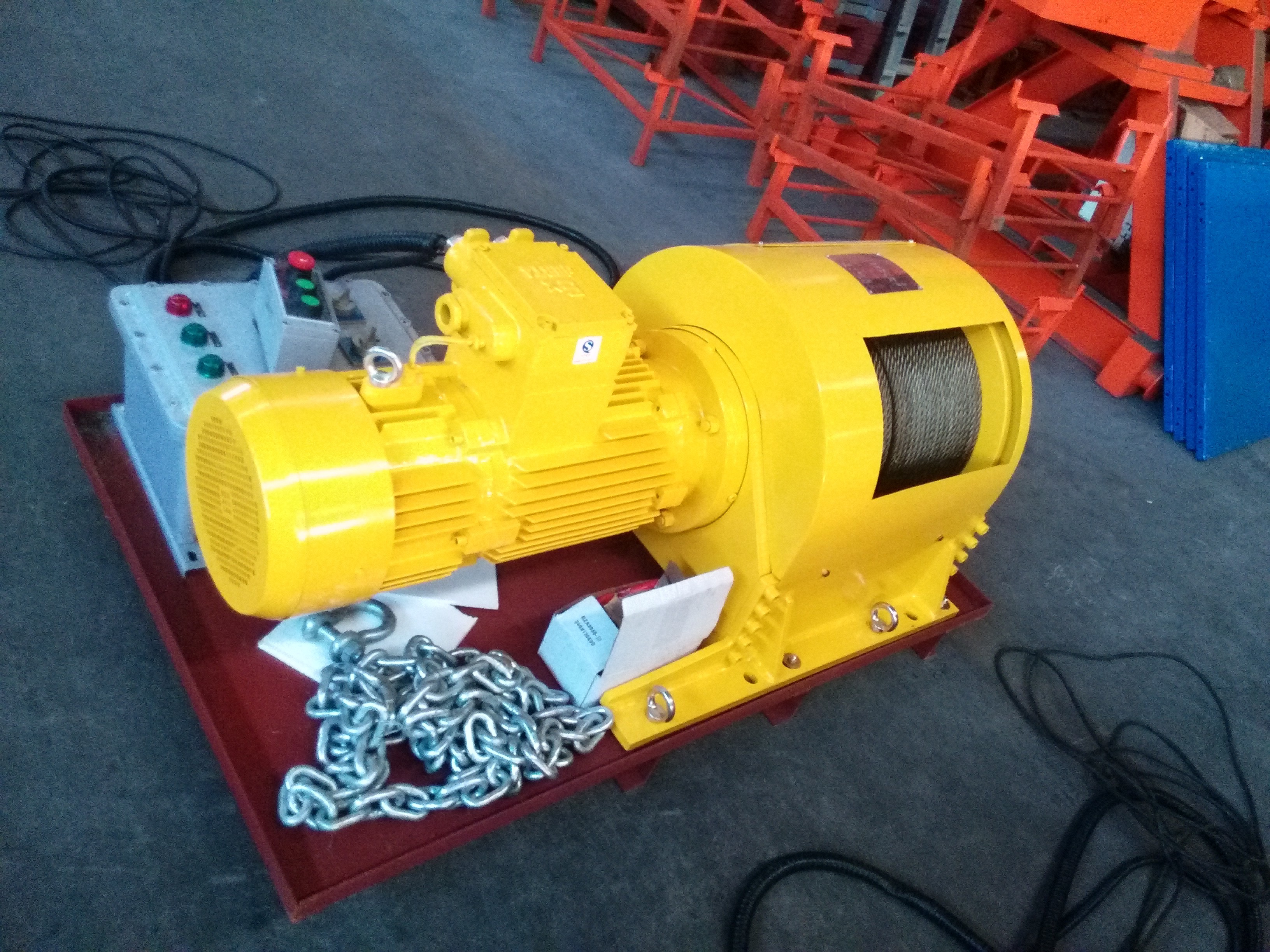

The DJFY type electric winch is a winch device. It is powered by a motor and drives the reel via a gear reduction mechanism, thereby realizing heavy traction and lifting. This winch comes with multiple advantages: its structure is compact, operation is convenient, work is safe and reliable, maintenance is simple, and operation is smooth.
The DJFY electric winch supports remote operation.
NUMBERING METHOD
① DJFY:DJ- electric winch, F- explosion-proof, Y- remote control.
○2 Max lifting force in first layer: :kN.
③ Max speed : m/min.
TECHNICAL PARAMETER
|
Item |
Specification parameter |
||||
|
Model |
DJFY-5*16 |
DJFY-20*8 |
DJFY-30*20 |
DJFY-50*19/10 |
DJFY-60*2 |
|
Ambient temperature |
-25℃∽40℃ |
||||
|
Specification of lubricating oil |
GL-5,80w-90. Freezing point -60 |
||||
|
Max Force lb |
1125 |
4500 |
6750 |
11250 |
13500 |
|
Max speed ft/s |
0.88 |
0.44 |
1.1 |
1.1/0.55 |
0.11 |
|
Rated power H.P |
2 |
5.4 |
14.7 |
24.8/14.7 |
5.4 |
|
Rope capacity ft |
130 |
260 |
390 |
390 |
165 |
|
Wire rope diameter in |
0.24 |
0.55 |
0.63 |
0.75 |
0.787 |
|
Overall dimension: L*W*H(in) |
27.6*11*13 |
49*23.5*24 |
46*30*24 |
57.5*32*26.6 |
53*32*26 |
