QJP Series Hydraulic Motor Air Capstan Winch 80ml/rev 20 ft/min
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Line Speed | 20 Ft/min | Gear Ratio | 3:1 |
|---|---|---|---|
| Drum Capacity | 24 M | Wire Rope Diameter | ∅8mm |
| Color | Yellow Orange Or Other Colors | Motor Displacement | 80ml/rev |
| Size | 390*190*340 Mm | Net Weight | 260Kg |
| Cable Length | 50 Ft | Power | HYDRAULIC MOTOR |
| Drum Size | 2.5" X 5.5 | Materials | Steel |
| Warranty | 12 Months | Usage | Lifting In Oilfield |
| Certifications | CE, ISO | Safety Features | Emergency Stop Button, Overload Protection |
| Highlight | hydraulic motor air capstan winch,manriding winch 80ml/rev,capstan winch 20 ft/min |
||
You can tick the products you need and communicate with us in the message board.
Product Description
QJP Series Hydraulic Motor-Powered Air Capstan, 80ml/rev
Product Specifications
| Attribute | Value |
|---|---|
| Line Speed | 20 ft/min |
| Gear Ratio | 3:1 |
| Drum Capacity | 24 m |
| Wire Rope Diameter | ∅8mm |
| Color | Yellow Orange or other Colors |
| Motor Displacement | 80ml/rev |
| Size | 390*190*340 mm |
| Net Weight | 260Kg |
| Cable Length | 50 ft |
| Power | HYDRAULIC MOTOR |
| Drum Size | 2.5" x 5.5 |
| Materials | Steel |
| Warranty | 12 Months |
| Usage | Lifting in Oilfield |
| Certifications | CE, ISO |
| Safety Features | Emergency Stop Button, Overload Protection |
Product Overview

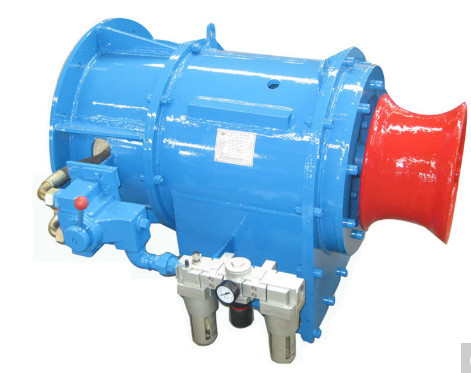

The QJP series air capstan is a high-performance pneumatic machinery product specifically engineered for demanding applications in ships, docks, and similar industrial environments. Powered by an air motor, it efficiently transmits power to the drum for reliable operation.
Numbering Method
- ① QJP: Pneumatic capstan
- ② Max lifting force in first layer: *10kN
- ③ Max speed: m/min
Technical Parameters
| Product Model | QJP-0.5*15 | QJP-3*15 | QJP-5*15 |
|---|---|---|---|
| Maximum Tractive Effort (kN) | 5 | 30 | 50 |
| Maximum Rope Speed (m/min) | 15 | 15 | 5-15 |
| Rated Power (kW) | 2.6 | 11 | 16 |
| Rated Intake Pressure | 0.8 | 0.8 | 0.8 |
| Rated Air Consumption (m³/min) | ≤5 | ≤11 | ≤18 |
| Weight (kg) | 200 | 350 | 500 |
